Break foreign monopoly and achieve domestic substitution；

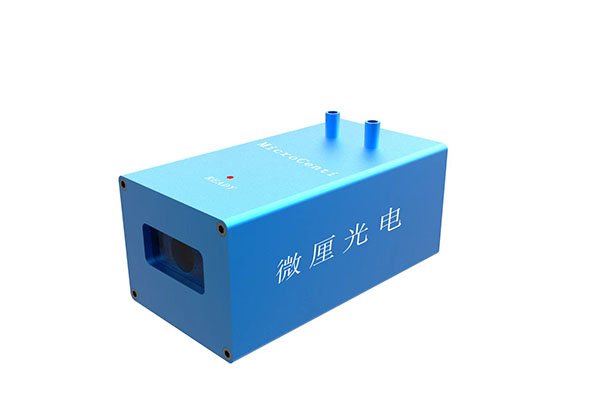

WMS-D-SH series
Water-cooled shell integrated design, no need to install additional water-cooled components, compact and lightweight;
It not only greatly reduces installation load but also significantly enhances cooling capacity, the product can directly measure high-temperature iron and steel products around 1400℃.
Application Scenarios: Speed and length measurement

Installation Distance	30cm-350cm(optional)	Temperature Range	-40℃--60℃
Laser Power	40mw	EMI Protection Level	Standard Level 4
Accuracy	＜0.05%	Zeroing Mode	High level, low level, rising edge, falling edge
Repeatability error	0.02%	Signal output	AB pulse, RS422, RS485, TCP/IP
Direction	Auto-detection	Pulse parameters	5V/24V optional
Minimum speed	0	Pulse output	Editable
Maximum speed	20000m/min	Industrial Protocol	Modbus，profinet
Allow acceleration	600m/s²	Sampling time	0.01ms（100,000 times per second）
Power supply voltage	20~28 VDC	Protection Rating	IP66
Power Consumption	<11W

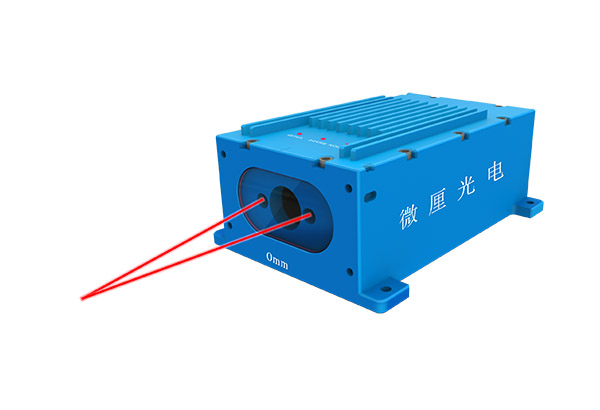

Water-cooled integrated laser Doppler velocity length measuring instrument

WMS-D-SH series
The integrated design of the water-cooled shell does not require additional water cooling kits, which is compact and lightweight;
Not only does the installation load be greatly reduced, but the cooling capacity is also significantly improved, and the product can directly measure high-temperature steel products at about 1400°C.
Application scenarios: Speed and length measurement of various hot rolled, high-temperature steel plates, billets, and steel pipes.

Installation distance	80cm-350cm (optional)	Temperature range	-40℃--60℃
Laser power	40mw	Anti-electromagnetic interference rating	Standard level 4
precision	<0.05%	Zero mode	High level, low level, rising edge, falling edge
Repeatability error	0.02%	Signal output	AB Pulse, RS422, RS485, TCP/IP
Direction	Automatically detect	Pulse parameters	5V/24V optional
Minimum speed	0	Pulse output	Editable
Maximum speed	20000m/min	Industrial agreements	Modbus
Acceleration is allowed	600m/s²	Sampling time	0.01ms (100000 times per second)
Supply voltage	20~28 VDC	Protection level	IP66
Power consumption	<11W

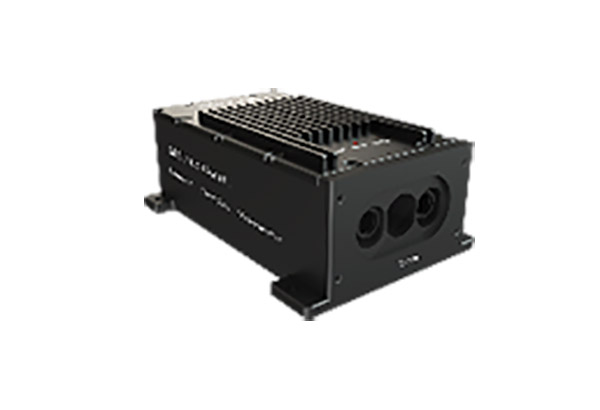

high-speed bar special speed meter;

MD-D-SHKD1000
Special measurement products for water-cooled bar production lines, anti-shake design, maximum jitter amplitude of 10mm, customized for high-speed bar production lines.
Due to the high-speed movement of the finished bar in the running groove, the continuous rolled bar production line produces up and down jitter, and the conventional Doppler velocity tester is used for detection, which will cause signal loss due to the jitter of the bar, and its length cannot be accurately measured;
However, the MD-D-SHKD1000 series adopts optical anti-jitter design, which can accurately measure the speed and length of bars that shake up and down at the same time in high-speed movement, effectively solving the problem of measuring the length of the bar production line.

Installation distance	100cm-150cm	Temperature range	-40℃--60℃
Laser power	40mw	Anti-electromagnetic interference rating	Standard level 4
precision	<0.05%	Zero mode	High level, low level, rising edge, falling edge
Repeatability error	0.02%	Signal output	AB Pulse, RS422, RS485, TCP/IP
Direction	Automatically detect	Pulse parameters	5V/24V optional
Minimum speed	0	Pulse output	Editable
Maximum speed	20000m/min	Industrial agreements	Modbus
Acceleration is allowed	600m/s²	Sampling time	0.01ms (100000 times per second)
Supply voltage	20~28 VDC	Protection level	IP66
Power consumption	<11W

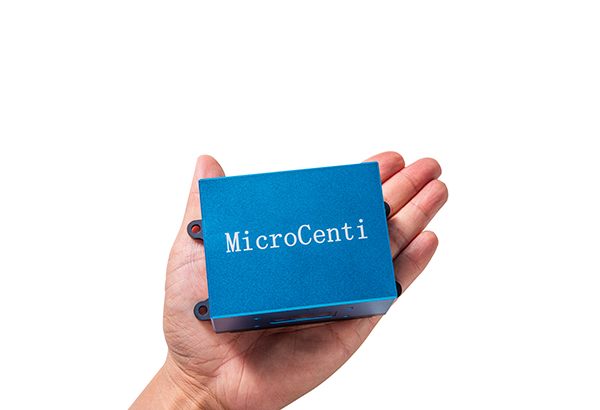

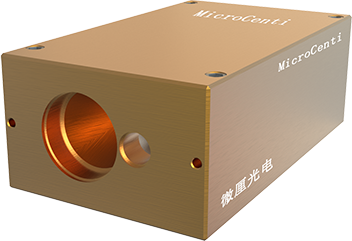

Miniaturized design, suitable for installation in small spaces；

It is suitable for installation in small spaces, and adopts the split design of detection and computing processors, so that the detection device can be installed in a small space.

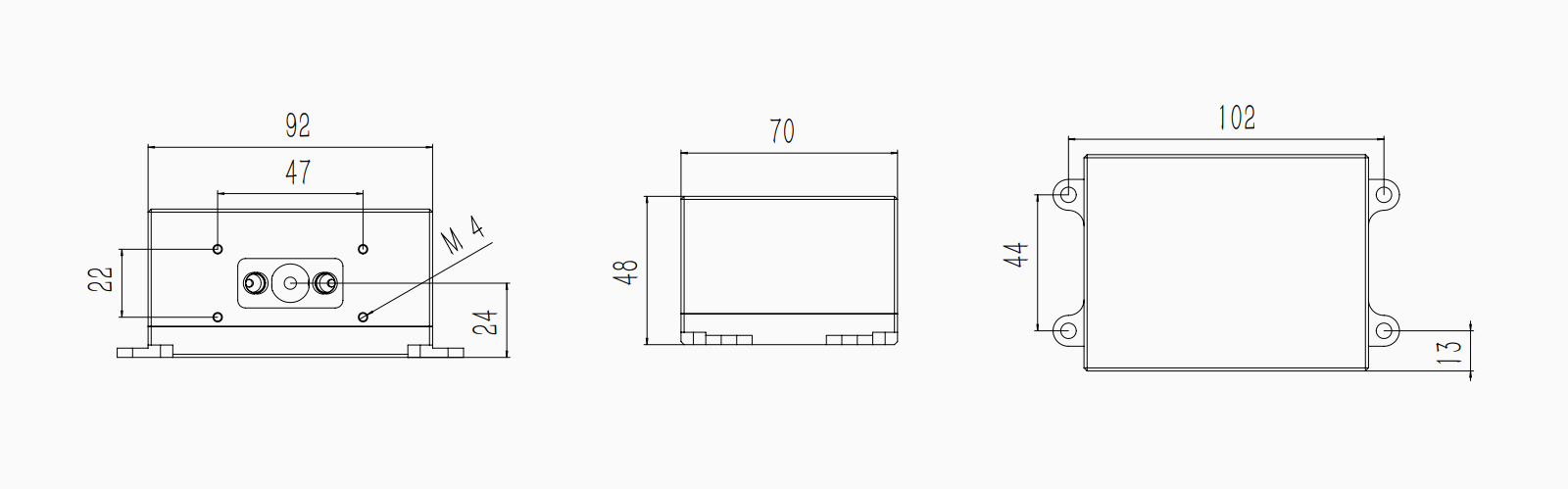

Dimensions (mm): 70×92×48
Measuring distance: 130mm (distance can be customized)
Accuracy: ≤ 0.05%

Installation distance	13cm-50cm	Temperature range	-40℃--60℃
Laser power	40mw	Anti-electromagnetic interference rating	Standard level 4
Precision	<0.05%	Zero mode	High level, low level, rising edge, falling edge
Repeatability error	0.02%	Signal output	AB Pulse, RS422, RS485, TCP/IP
Direction	Automatically detect	Pulse parameters	5V/24V optional
Minimum speed	0	Pulse output	Editable
Maximum speed	20000m/min	Industrial agreements	Modbus
Acceleration is allowed	600m/s²	Sampling time	0.01ms (100000 times per second)
Supply voltage	20~28 VDC	Protection level	IP66
Power consumption	<11W
