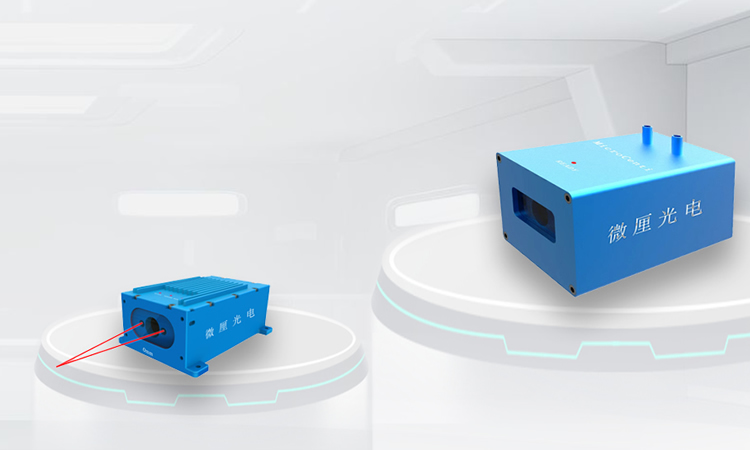

Laser Doppler Velocimeter and Measuring System
Ends foreign monopoly and enables domestic replacement
MicroCenti
Laser Doppler Velocimeter and Measuring System
Ends foreign monopoly and enables domestic replacement
MicroCenti
Laser Doppler Velocimeter and Measuring System
Ends foreign monopoly and enables domestic replacement

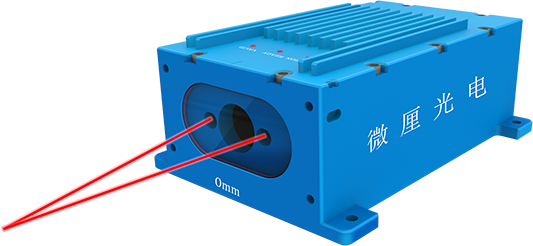

Laser Doppler Velocimeter and Measuring System
Technical features
  • Using high-precision high-speed AD sampling and high-speed FPGA solving, it has high precision, low noise, automatic direction detection, and can measure "0" speed
  • It can be reliably measured on almost any surface, resistant to electromagnetic interference, reliable and stable, and has a long service life
Application scenarios
  • Length measurement
  • Speed measurement
  • Elongation rate and speed difference control
  • Cut-to-length
  • Pulses trigger cameras, coders, etc
  • Seconds flow control
Typical industries
Metallurgical industry Wire and cable industry Film industry Paper packaging industry cut-to-length Measurement of length of other materials Elongation velocity difference measurement Trigger camera defect detection Trigger laser coder Instantaneous speed measurement Special speed measurement system for high-speed bar production line
Scenarios in the field of rail transit
  • Speed measurement of trains and positioning of trains
  • Train maintenance and condition monitoring
Technical Parameter
Installation Distance 30cm-350cm(optional) Temperature Range -40℃--60℃
Laser Power 40mw EMI Protection Level Standard Level 4
Accuracy <0.05% Zeroing Mode High level, low level, rising edge, falling edge
Repeatability error 0.02% Signal output AB pulse, RS422, RS485, TCP/IP
Direction Auto-detection Pulse parameters 5V/24V optional
Minimum speed 0 Pulse output Editable
Maximum speed 20000m/min Industrial Protocol Modbus,profinet
Allow acceleration 600m/s² Sampling time 0.01ms(100,000 times per second)
Power supply voltage 20~28 VDC Protection Rating IP66
Power Consumption <11W
